your curent location : home > product > High Efficiency Thickener High Efficiency Thickener

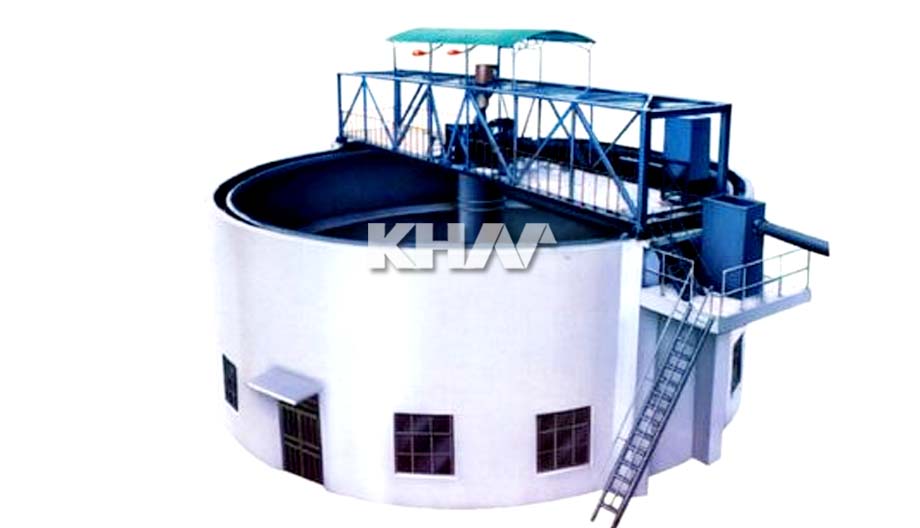

High Efficiency Thickener

Charge Amount:1.8-204.6t
Reference Power:5.6-6250t/d
Application Range:Metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc

The Application and Function of High Efficiency Concentrator:

The high efficiency concentrator produced by our company is suitable for removing the water in the ore concentrate and the tailings in the ore beneficiation plant and it can concentrate the ore pulp from 20-30% to about 40-70%. This high efficiency concentrator is widely used in metallurgy, chemistry, coal, non-metal ore beneficiation and environmental protection industry.

concentrator

The Performance Characteristics of High Efficiency Concentrator:

(1) Add flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.

(2) Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.

(3) Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.

(4) High efficiency concentrator is equipped with comprehensive automatic control device.

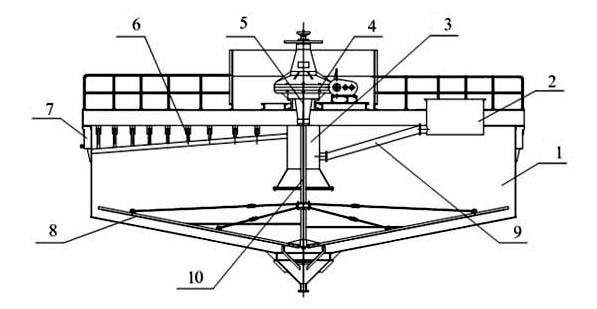

The high efficiency concentrator is mainly composed of round concentration basin and rake scraper. The solid particles hanging in the ore pulp of the concentration basin fall under the gravity and the upper part will be clear water, so that the solid particles will be separated from the liquid. The slurry deposited on the bottom of the concentration basin is continuously scrapped by the rake scraper to central discharging port of the bottom of the basin and discharged, and the clear water will overflow along the upper edge of the concentration basin.

Specification		Concentration pond （m）		Deposit square(m²)	Harrow part			Motor		Processing capacity (t/d)	Total weight（t）
Model	Specification	Inner diameter	Depth	Pond degree	Method	Height（m）	Rotation time（min/r）	Driving	Lifting	Processing capacity (t/d)	Total weight（t）
NZS-1	Φ1.8m	1.8	1.8	2.54	Manual	0.16	2	Y90L-6 1.1KW	----	5.6	1.8
NZS-3	Φ3.6m	3.6	1.8	10.2	Manual	0.35	2.5	Y90L-6 1.1KW	----	22.4	4.1
NZS-6	Φ6m	6	3	28.3	Manual	0.2	3.7	Y90S-4 1.1KW	----	62	10.2
NZSF-6	Φ6m	6	3	28.3	Manual	----	3.7	Y90S-4 1.1KW	----	62	4.8
NZ-9	Φ9m	9	3	63.6	Auto	0.25	4.34	Y132S-6 3KW	XWD0.8-3 0.8KW	140	8.1
NZS-9	Φ9m	9	3	63.6	Manual	0.25	4.34	Y132S-6 3KW	----	140	7.1
NZS-12	Φ12m	12	3.5	113	Manual	0.25	5.28	Y132S-6 3KW	----	250	10.5
NZ-15	Φ15m	15	4.4	176	Auto	0.4	10.4	JTC752A-44 5.2KW	Y112M-6 2.2KW	350	24.7
NZ-20	Φ20m	20	4.4	314	Auto	0.4	10.4	JTC752A-44 5.2KW	Y112M-6 2.2KW	960	27.5
NZ-30	Φ30m	30	7.165	707	----	0.61	13.7	Y100L1-4 2.2×2KW	YCJ132-S 1.5KW	----	34.8
NZS-45	Φ45m	45	4.636	1590	Manual	----	20	JTC672A-44 5.2KW	YCJ160-S 2.2KW	515	51.8
NT-15	Φ15m	15	3.5	177	----	----	8.4	Y132M2-6 5.5KW	----	390	12
NQ-18	Φ18m	18	3.5	255	----	----	10	Y132M2-6 5.5KW	----	560	11
NQ-24	Φ24m	24	3.4	452	----	----	12.7	Y160M-6 7.5KW	----	1000	25.3
NG-30	Φ30m	30	3.6	707		----	16	Y160M-6 7.5KW	----	1570	29.4
NJ-38	Φ38m	38	4.9	1134	----	----	10-25	JZT252-4 11KW	Y160M-6 7.5KW	1600	60.2
NT-45	Φ45m	45	5.05	1590	Auto	----	19.3	Y160L-6 11KW	----	2400	63.6
NTJ-53	Φ53m	53	5.07	2202	----	----	23.18	Y180L-6 15kw	----	6250	84.8
NT-100	Φ100m	100	5.65	7846	----	----	43	Y180L-6 15KW	----	3030	204.6
