The Description and Function of Chinaware Ball Mill:

Chinaware ball mill is mainly used for the mixing and grinding of materials, and the fineness of the final products is even, thus saving motive power. It can be used in both dry grinding and wet grinding. This machine can adopt different lining board types according to the production need to satisfy different needs of the customers. The fineness of the grinding process is automatically controlled by the grinding time.

The Advantages and Benefits of Chinaware Ball Mill:

This product has the features of small investment, energy and electricity conservancy, unique structure, easy and simple operation, safe use and stable and reliable performance, so that it is suitable for mixing and grinding common and special materials. According the proportion and hardness of the materials and the output, the customers can choose suitable machine type and the types of lining plate and grinding media.

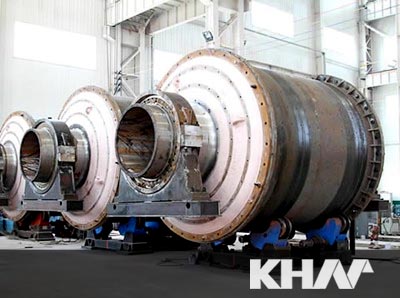

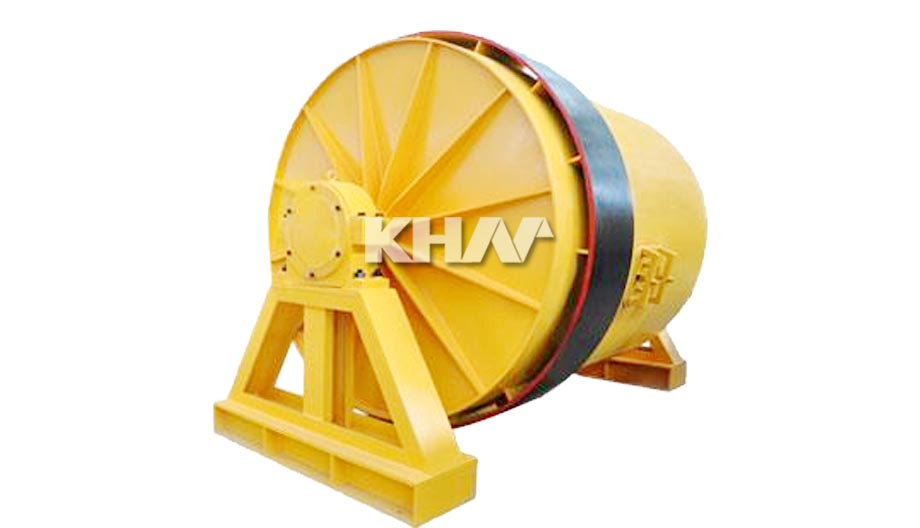

Chinaware ball mill is a horizontal type cylinder rotary device which is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing.

The electro motor drives the cylinder to rotate through the reducer, and the broken ore and the steel balls inside the cylinder are brought by the lining board to a certain height under the frictional force and eccentric force produced by the rotation of the cylinder. Due to the action of gravity, the ores will drop and are gradually crushed under the impacting and grinding effect and the crushed ores will be discharged out of the cylinder through the discharging part. The discharged ores are classified by the spiral classifier, and the coarse sand will go back to ball mill from the joint feeding machine to be ground again. The feeding machine continuously and evenly feeds materials, and the ores will continuously and evenly go into the ball mill through the joint feeding machine, and the ground materials will be continuously discharged from Chinaware ball mill. For this reason, Chinaware ball mill is a powder grinding machine that can continuously work for 24 hours every day.
