BF & KYF Floatation cell

Processing ability: 0.2–16 m³/min
Impeller rotation speed: 191–400 r/min
Dimensions: 700×700×750–2200×2900×1400 mm
Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral, etc

The Inner Structure and Function of Flotation Cell:

This type of flotation cell is formed by a U-shaped trough, hollow shaft inflation and suspension stator and especially a new type impeller which is a cone impeller whose blades lean backwards just like a centrifugal pump wheel with height ratio rotary speed.

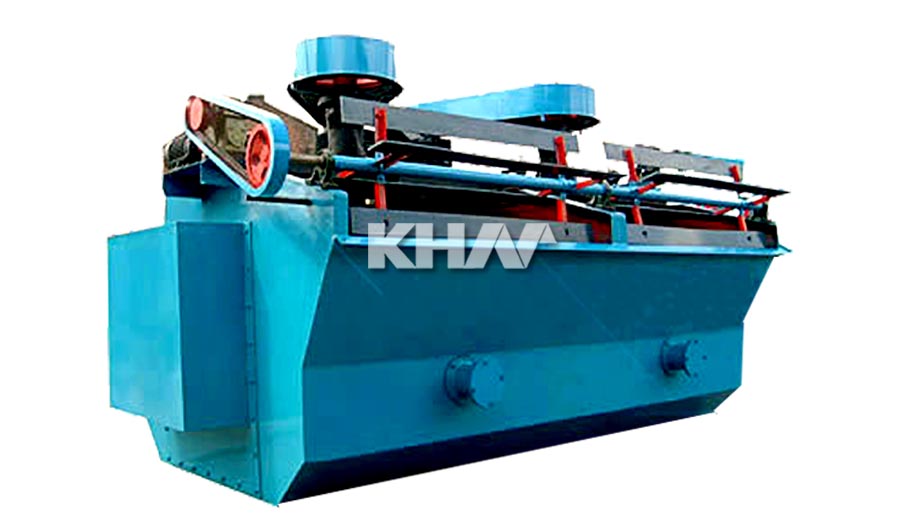

flotation_machine

The structure of flotation machine: this machine is mainly composed of pulp chute, mixing device, air charging system, mineralized froth discharging device and electro motor.

(1) Pulp chute: It has pulp feeding mouth and the gate device used for adjusting the liquid level and it is mainly composed of mainly composed by the chute body which is melt by the steel board and gate melt by the steel board and steel rod.

(2) Mixing device: It is mainly used for mixing the pulp in order to prevent the mineral sand to deposit on the chute, and it is mainly composed by the belt wheel, impeller, vertical shaft and the impeller is made of the anti-abrasion rubber.

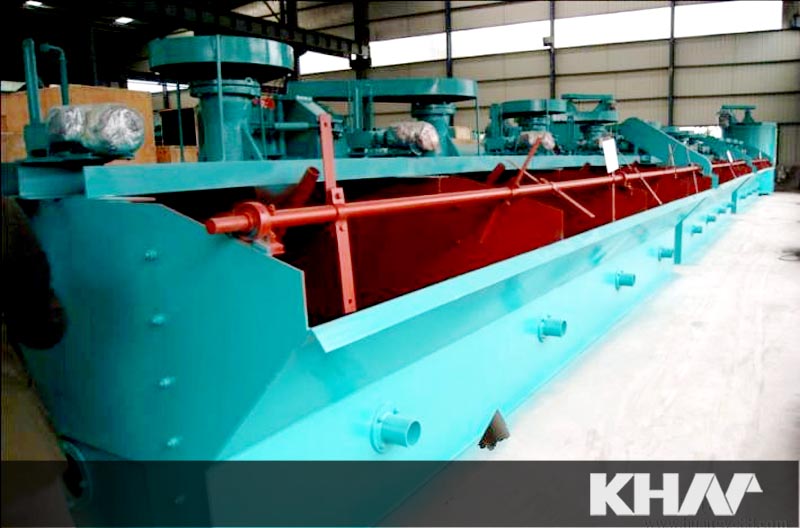

flotation_cell

BF Flotation Machine

Model	Trough cubage （m³）	Inside dimensions （L×W×H）（m）	Air suction amount （m³/㎡·min）	Power （kw）	Motor model	Processing capacity （m³/min）	Single trough weight (kg)
BF-0.37	0.37	0.74×0.74×0.75	0.9～1.05	1.5	Y90L-4	0.2～0.4	470
BF-0.65	0.65	0.85×0.95×0.9	0.9～1.10	3.0	Y132S-6	0.3～0.7	932
BF-1.2	1.2	1.05×1.15×1.10	1.0～1.10	5.5 4.0	Y132M2-6 Y132M1-6	0.6～1.2	1370
BF-2.0	2.0	1.40×1.45×1.12	1.0～1.10	7.5	Y160M-6	1.0～2.0	1750
BF-2.8	2.8	1.65×1.65×1.15	0.9～1.10	11	Y180L-8	1.4～3.0	2130
BF-4.0	4.0	1.9×2.0×1.2	0.9～1.10	15	Y200L-8	2～4	2585
BF-6.0	6.0	2.2×2.35×1.3	0.9～1.10	18.5	Y225S-8	3～6	3300
BF-8.0	8.0	2.25×2.85×1.4	0.9～1.10	22 30	Y225M-8 Y250M-8	4～8	4130
BF-10	10	2.25×2.85×1.7	0.9～1.10	22 30	Y225M-8 Y250M-8	5～10	4660
BF-16	16	2.85×3.8×1.7	0.9～1.10	37 45	Y280S-8 Y280M-8	8～16	8320
BF-20	20	2.85×3.8×2.0	0.9～1.10	37 45	Y280S-8 Y280M-8	10～20	8670
BF-24	24	3.15×4.15×2.0	0.9～1.10	45	Y280M-8	12～24	8970

KYF Flotation Machine

Model		KYF-1	KYF-2	KYF-3	KYF-4	KYF-8	KYF-16	KYF-24	KYF-38
Chute dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	2900	3400
Single effective weight（kg）		1056	1419	1885	2206	3600	5900	9830	15097
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production capacity(calculated by slurry volume)(m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3-8	4-16	4-24	10-38
Main shaft motor	Model	Y132M1-6	Y160M2-8	Y160L-8	Y180L-8	Y200L-8	Y250M-8	Y250M-8	Y280S-8
Main shaft motor	Power（kw）	4	5.5	7.5	11	15	30	30	37
Impeller
	Rotation speed(r/min)	960	720	720	970	730	730	730	740
	Diameter（mm）	340	410	480	550	630	740	800	880
	Height（mm）	215	256	300	340	390	460	-	545
	Rotation speed(r/min)	281	247	219	200	175	160	150	138
	Circular velocity(m/s)	5	5.3	5.5	5.76	5.77	6.7	6.25	6.36
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotation speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotation speed(r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter（mm）	500	500	580	600	600	700	700	500
Wind pressure of fan（kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max.air injection amount(m³/㎡·min)		2	2	2	2	2	2	2	2
