This crushing plant is used to crush soft or medium hard stone (like: limestone, gypsum, marble, calcite, dolomite, etc) from <500mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
With it, LIMING can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency.
Equipment List:
|
NO． |
Equipment |
Model |
Max. Feeding Size (mm) |
Motor(KW) |
Number |
|
I |
Vibrating Feeder |
GZD960X3800 |
500 |
11 |
1 |
|
II |
Jaw Crusher |
PE600x900 |
500 |
75 |
1 |
|
III |
Impact Crusher |
PF1214 |
300 |
132 |
1 |
|
Ⅳ |
Vibrating Screen |
4YZS1860 |
100 |
30 |
1 |
|
Belt:B500×10m, B800×18m, B800×26m, B500×27m, B500×15m, B500×15m, B500×15m, B500×15m |
KHM is going to equip you a solution as the following:

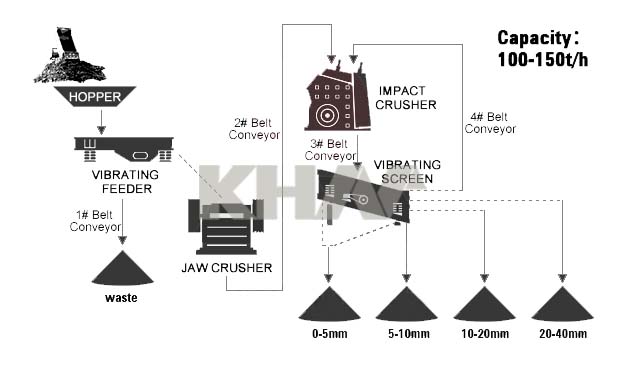

Vibrating feeder GZD960X3800 feed the stone evenly and smoothly into the jaw crusher PE600X900, which will crush the stone from <500mm down to about 100mm as the primary crusher. Then belt conveyor will take the outputs of PE600X900 into the secondary crusher – impact crusher PF1214, to get further crushed down to about 40mm (or other sizes as the customer wanted), then the outputs of PF1214 will be carried to vibrating screen 4YZS1860, to get separated into 5 kinds: 0-5, 5-10, 10-20, 20-40, and >40mm. Then >40mm will be carried back to 4YZS1860 for re-crushing, while 0-5, 5-10, 10-20, 20-40mm goes out into piles as final products.
