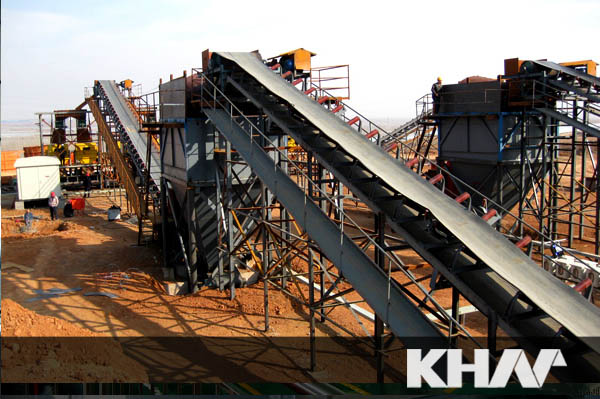

This crushing plant is used to crush soft or medium hard stone (like: limestone, gypsum, marble, calcite, dolomite, etc) from <720mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
With it, KHM can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency. Also, with the most advance technology, automatic lubricating system and hydraulic system, the European type jaw crusher and impact crusher will provide you the best experience.
Equipment List::
|
NO． |
Equipment |
Model |
Max. Feeding Size (mm) |
Motor(KW) |
Number |
|
I |
Vibrating Feeder |
GZD1300X4900 |
600 |
18.5 |
1 |
|
II |
Jaw Crusher |
PEW860 |
720 |
132 |
1 |
|
III |
Impact Crusher |
PFW1318Ⅲ |
300 |
200 |
1 |
|
Ⅳ |
Vibrating Screen |
4YZS2460 |
100 |
37 |
1 |
|
Belt:B500×10m, B1200×20m, B1200×26m, B800×27m, B650×15m, B650×15m, B650×15m, B650×15m |
KHM is going to equip you a solution as the following:
Vibrating feeder GZD1300X4900 feed the stone evenly and smoothly into the European type jaw crusher PEW860, which will crush the stone from <720mm down to about 180mm as the primary crusher. Then belt conveyor will take the outputs of PEW860 into the secondary crusher – European type impact crusher PFW1318III, to get further crushed down to about 40mm (or other sizes as the customer wanted), then the outputs of PFW1318III will be carried to vibrating screen 4YZS2460, to get separated into 5 kinds: 0-5, 5-10, 10-20, 20-40, and >40mm. Then >40mm will be carried back to 4YZS2460 for re-crushing, while 0-5, 5-10, 10-20, 20-40mm goes out into piles as final products.
