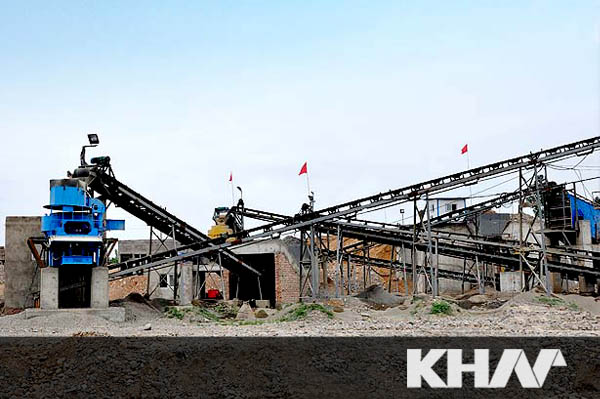

This crushing plant is used to crush hard stone (like: Granite, basalt, river stone, etc.) from <720mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
With it, KHM can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency. Also, with the most advance technology, automatic lubricating system and hydraulic system, the European type jaw crusher and impact crusher will provide you the best experience.
Euipment List:
|
NO． |
Equipment |
Model |
Max. Feeding Size (mm) |
Motor(KW) |
Number |
|
I |
Vibrating Feeder |
GZD1300X4900 |
600 |
18.5 |
1 |
|
II |
Jaw Crusher |
PEW860 |
720 |
132 |
1 |
|
III |
Vibrating Feeder |
GZG100-4 |
|
|
1 |
|
Ⅳ |
Cone Crusher |
CSB240(C) |
1650 (5 1/2')Dia. mm (feet) |
240 |
1 |
|
V |
Vibrating Screen |
4YZS2160 |
100 |
30 |
1 |
|
Belt:B500×10m, B1200×24m, B1200×36m, B1200×26m, B800×27m, B650×15m, B650×15m, B800×18m, B800×18m |

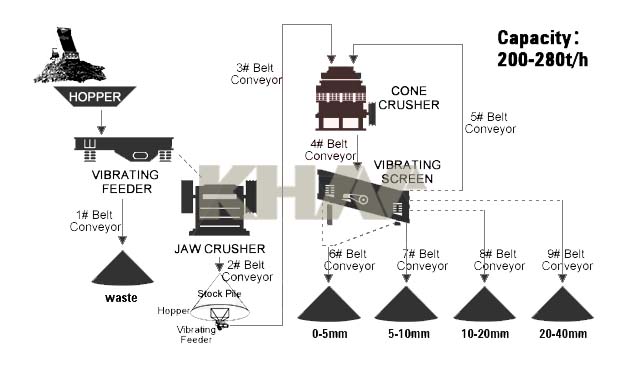

Raw material under 720mm is fed into primary European type jaw crusher PEW860 via vibrating feeder GZD1300*4900. Wastes screened out by grizzly bar on the vibrating feeder and be transported to designated place via belt conveyor.
Stuff from European type jaw crusher PEW860 is transported to stock pile via belt conveyor.
Stuff from stock pile is fed into secondary cone crusher CSB240(c) via feeder GZG100-4 and belt conveyor.
Stuff from cone crusher CSB240(c) is fed into vibrating screen 4YZS2160 via belt conveyor.
After screening, eligible stuff is transported to final products pile via belt conveyor.
Ineligible stuff is transported to cone crusher CSB240(c) for recrushing.
